Manufacturer, Exporter and Suppliers of Stainless Steel

Check Valves

Check Valves

Hastelloy Lift Check Valves Supplier, Ductile and Alloy Iron Check Valve Stockist, Cast Iron Check Valves Exporter.

Check Valves are an essential product offered by Wao-loc Instrumentations that helps customers in ways more than one.

SS Check Valves are automatic valves that open with the forward flow of the fluid and close with the reverse flow. The pressure applied by the liquid that passes through the system opens up the valve. On the other hand, any reversal flow will close this valve. Stainless Steel Check Valves are of two types; Swing Check Valve and Lift Check Valve. Duplex Steel Check Valves maintain pressure and prevent backflow. They are commonly used as a backup in case a pump fails to function. Some other uncommon types of Check Valves are Ball Check Valve, Water Check Valve, Umbrella Check Valve, etc.

Stainless Steel Check Valves Dealer, Alloy Steel Check Valve, Carbon Steel Check Valves Wholesaler, Bronze Check Valves Stockist.

Check Valves - Super Duplex Steel Check Valves, Nickel Alloy Check Valve, Hastelloy Alloy Check Valve Distributor, Incoloy Alloy Check Valves, Inconel Check Valves, SS Swing Check Valves Stockist, Monel Diaphragm Check Valve, Hastelloy Lift Check Valves Distributor, Ductile and Alloy Iron Check Valve Suppliers, Cast Iron Check Valves Distributor
40 years of Committed Experience in Check Valves.
Wao-loc Instrumentations Supplier & Exporter Valves In World Wide

All these types of Check Valves are supplied by Wao-loc Instrumentations to their clients along with services that give customers assured quality and loyalty.

For Any Query : Contact Us

Specification :

Manufacturer of Wao-loc Instrumentations

MATERIAL : CS-105, AS-F11, F12, S.S.-304, 304 L, 316, 316 L

GLAND PACKING : Graphite Asbestos, Inconel, Teflon asbestos, PTFE STEM


TYPE : Screwed, S/W. and Flanged

END CONDITION : Screwed to ANSI B2.1 / IS 554 / Socket Weld Ends. ANSI B16. 11 / IS 4712 / Butt Weld to ANSI B 16.25 / Flanged according to ANSI-B 16.5 / BS 1560


TEST PRESSURE : 211kg / Cm2 i.e 3000 psi / 141kg / Cm2 i.e 2000 psi / 5.6 kg / Cm2 i.e 80 psi

Delivery :

Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn

Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports

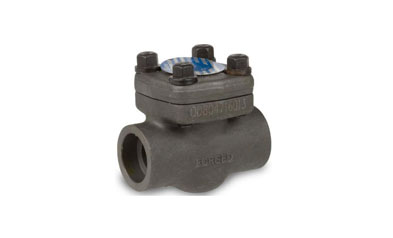

Product Range For Cast And Forged Swing Check Valves :
Valve Type Class Rating Size Range Shell Material As Per Specification
Swing Check 150# 2" to 36"

ASTM A217 Gr. WC1
ASTM A217 Gr. WC6
ASTM A217 Gr. WC9
ASTM A217 Gr. C5
ASTM A217 Gr. C12
ASTM A351 Gr. F8
ASTM A351 Gr. F3
ASTM A351 Gr. F8M
ASTM A351 Gr. CF3M
ASTM A351 Gr. CN7M
ASTM A351 Gr. CF8C
ASTM A351 Gr. CD4Mcu
ASTM A494 Gr. CW2M
ASTM A494 Gr. CW2M
ASTM A494 Gr. CY40
ASTM A995 Gr. 1A
ASTM A995 Gr. 4A
ASTM A995 Gr. 5A
ASTM A995 Gr. 6A
NACE malt. Grade to NACE MR0175/NACE MR

Swing Check 300# 2" to 36"
Swing Check 600# 2" to 32"
Swing Check 800# 1/2" to 2"
Swing Check - PRESSURE SEAL 900# 1/2" to 20"
SWING CHECK - PRESSURE SEAL 1500# 1/2" to 20"

Note :
  • Valves Can be Supplied With Actuator, Pad Lock and Other Accessories Like Limit Switch, Position Indicator, Solenoid Valve as Per Requirement
  • Stem Extention, Underground Service Features are Available
Standards :
Design Standard BS 1868
Testing Standard BS EN 12266 – 1
Face To Face ASME B 16.10
End Connection Flanged End - ASME B 16.5
Butt Weld End – ASME B 16.25
Pressure – Temperature Chart ASME B 16.34
Material :
STRUCTURE End Connection Flanged End Raised Face, Butt Weld End, RTJ,. ETC
MATERIAL Shell WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu,
Hastelloy, Inconel, Duplex Stainless Steel
Trim 13% Cr Steel, 304 , 304L, 316, 316L, 321, 347, F51, Monel
